Engineer Profiles & Dashboard

View the MRO dashboard KPIs, check engineer AME licence status, understand licence validation during assignment, and monitor work order metrics.

Module: 145 MRO · 7 steps · mro_engineer admin

Dashboard Overview
1 Open the Dashboard

Navigate to 145 MRO → Dashboard in the sidebar. The dashboard loads at /mro145/dashboard showing real-time KPI cards for MRO work order metrics.

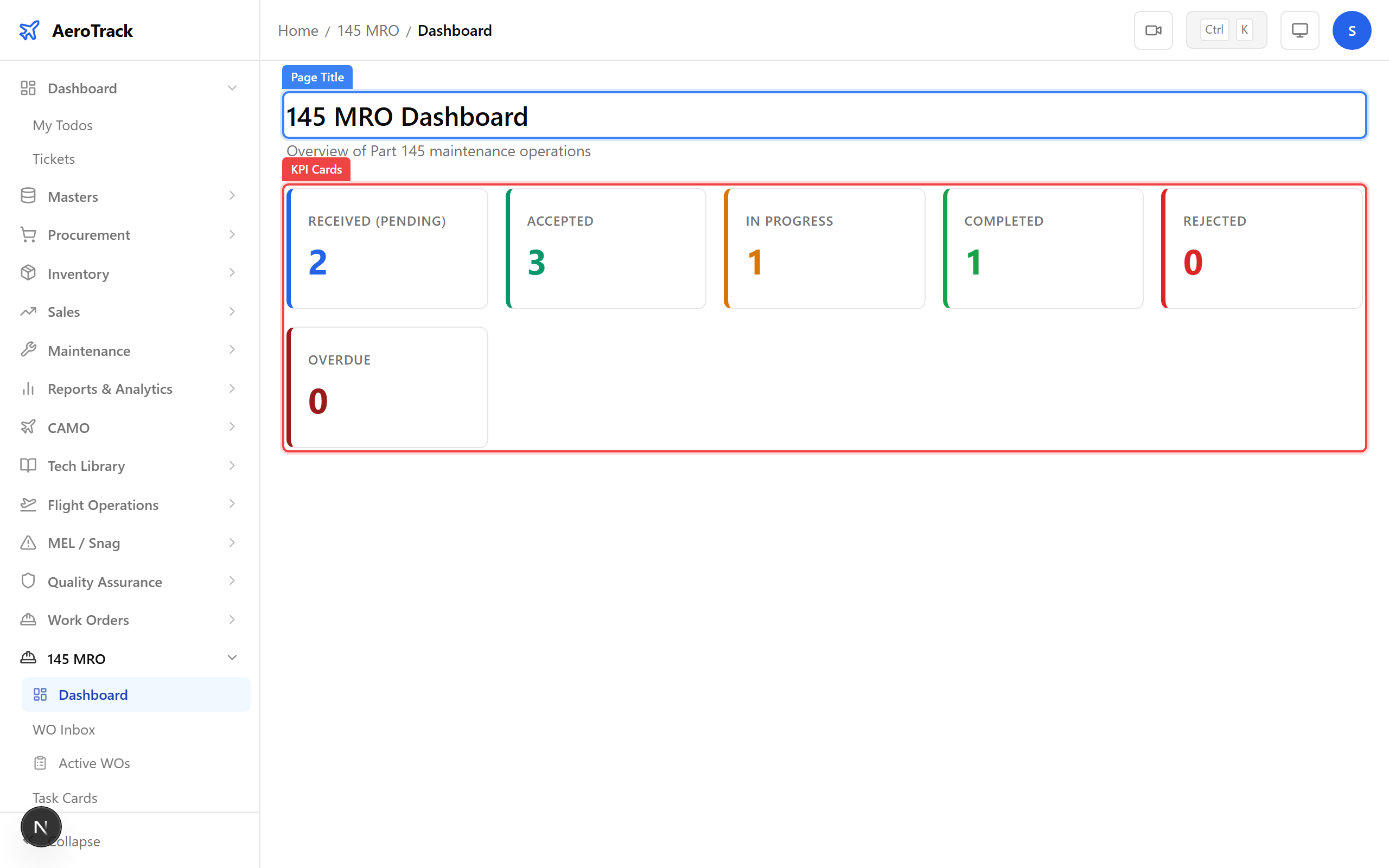

MRO 145 dashboard with KPI cards showing work order counts
2 Read the KPI Cards

The dashboard displays six KPI cards:

KPIMeaning
ReceivedWork orders in RECEIVED status awaiting acceptance.
AcceptedWork orders accepted but not yet in progress.
In ProgressWork orders currently being worked on.
CompletedWork orders completed, pending closure.
RejectedWork orders that were rejected.
OverdueWork orders past their due date — highlighted in red for urgency.

Click any KPI card to navigate to the relevant filtered list.

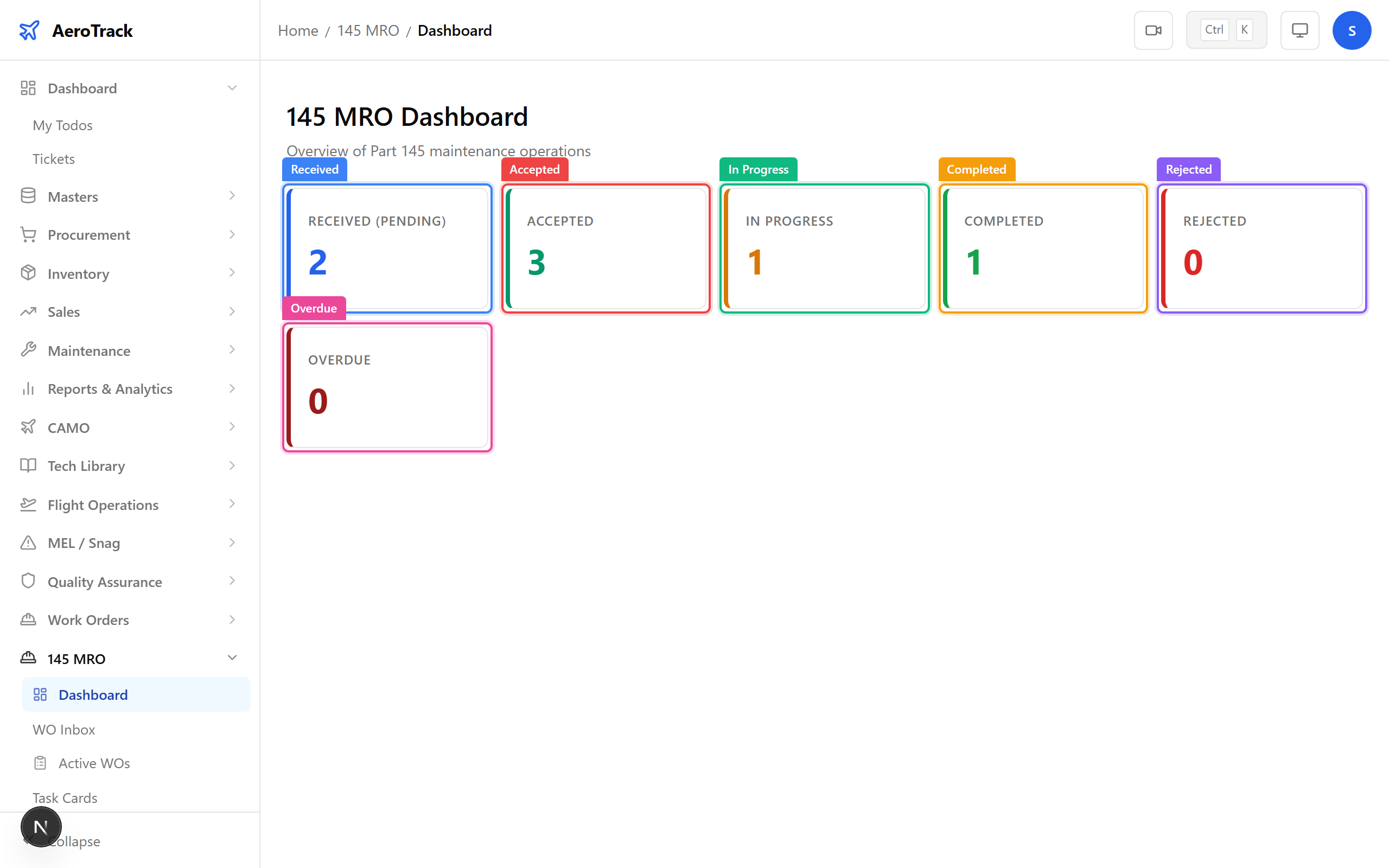

Six KPI cards: Received, Accepted, In Progress, Completed, Rejected, Overdue
Engineer Assignment & Licences
3 View the Engineer Dropdown

On any work order detail page in RECEIVED status, the Assign Engineer dropdown lists all active employees who hold AME licences.

Each engineer entry shows their name and licence summary. Only engineers with at least one valid (non-expired) AME licence appear in the list.

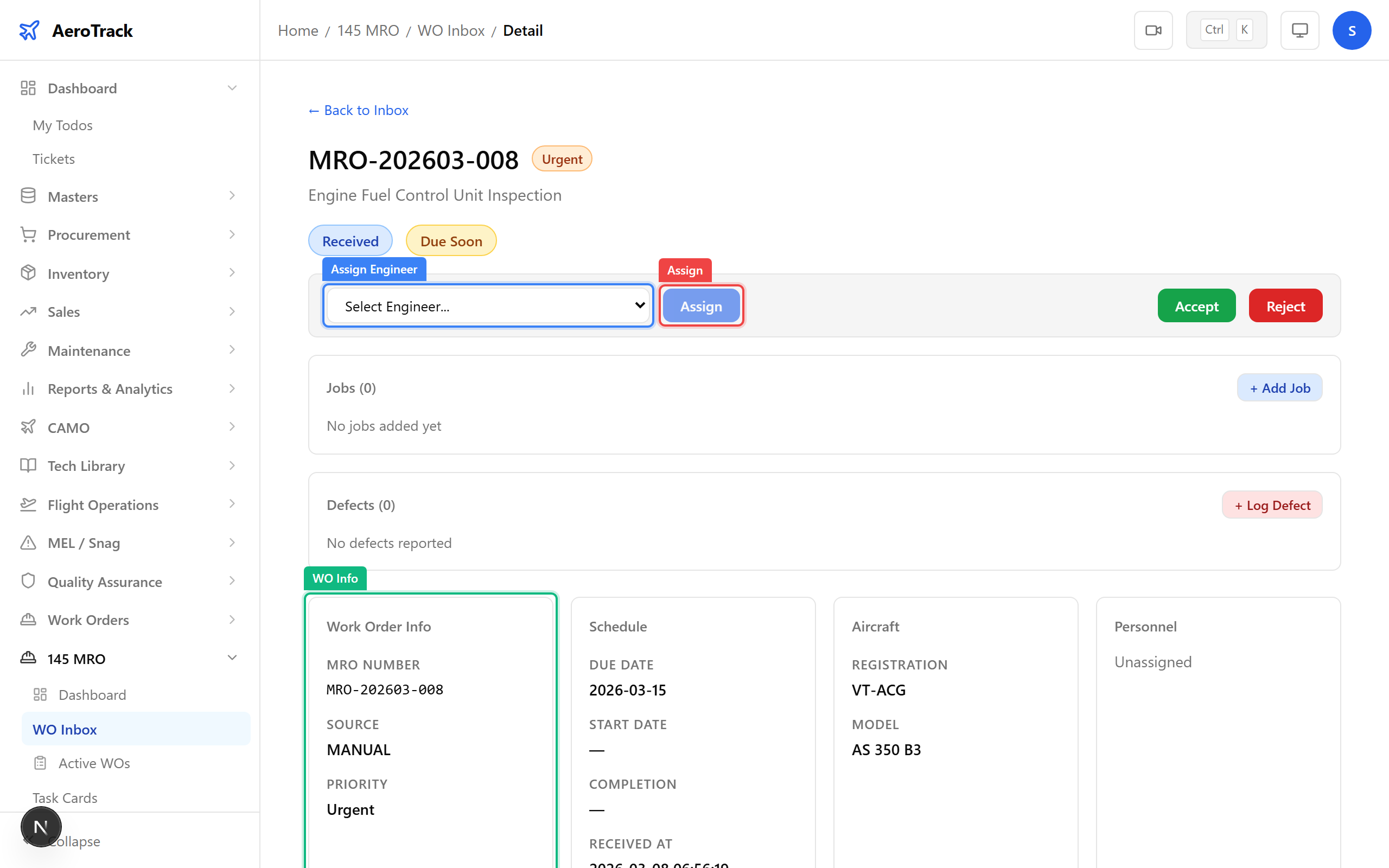

Engineer assignment dropdown showing available engineers with licence types
4 Understand Licence Badges

After an engineer is assigned, their AME licence details appear on the work order detail page with colour-coded expiry badges:

BadgeColourMeaning
OKGreenLicence valid, more than 90 days until expiry.
WARNINGYellowLicence expires within 90 days — plan renewal.
CRITICALOrangeLicence expires within 30 days — renew immediately.
EXPIREDRedLicence has expired — engineer cannot sign off work.
N/AGrayNo expiry date set for this licence.
AME licence types recognised by the system: AME A (airframe), AME B (engine), AME C (avionics). Each type is validated independently.
5 Handle Licence Warnings

When assigning an engineer whose licence is expiring soon:

  • WARNING (90 days): Assignment succeeds but a yellow alert is shown. Consider scheduling a licence renewal.
  • CRITICAL (30 days): Assignment succeeds but an orange alert is shown. Immediate renewal recommended.
  • EXPIRED: Assignment is blocked. The engineer must renew their licence before being assigned.
Licence validation happens at assignment time. If a licence expires after assignment, the engineer can still complete and sign off jobs. Periodic licence audits are recommended.
Monitor Active Work
6 View Active Work Orders

Navigate to 145 MRO → Active WOs. The page at /mro145/active shows all work orders in active statuses: ACCEPTED, PLANNING, IN PROGRESS, SIGN OFF, and COMPLETED.

The table includes columns for WO number, aircraft, title, priority, assigned engineer, status, and due date. Click any row to open the detail page.

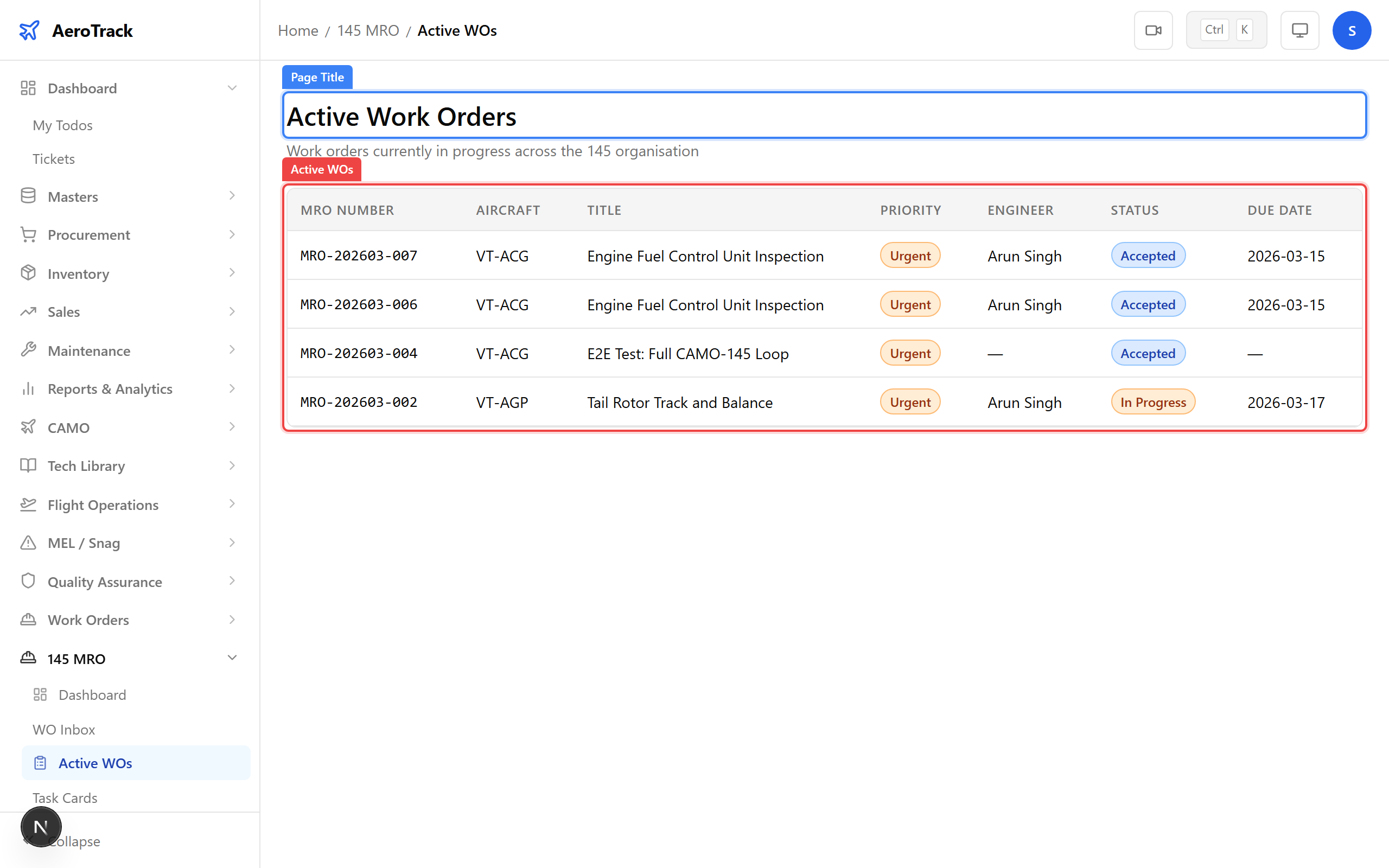

Active work orders table with status badges and due dates
7 Track Due Status

Each work order with a due date shows a due-status badge:

StatusColourCondition
OKGreenMore than 7 days until due date.
DUE SOONYellowDue within the next 7 days.
OVERDUERedPast the due date.
N/AGrayNo due date set, or WO is in terminal status.

Use the Overdue KPI on the dashboard to quickly identify work orders that need immediate attention.

For a cross-module view of all maintenance due items, see the Inspection Due Report in the CAMO module.
